Large sintering furnace

Fenggu large-scale sintering furnace, the use of ceramic liner patented technology, to ensure the purity of the powder, in the form of dynamic tumbling heating, instead of the traditional static sagger sintering method, to ensure the uniformity and stability of the heat, to avoid overcooking, entrapment and other phenomena. Compared with the traditional sintering furnace, the production efficiency is increased by more than 30%, energy consumption is reduced by 50%, the production efficiency is greatly improved, the operating cost is greatly reduced, more cost-effective.

Category：

Production Rotary Kiln

keyword：Experimental rotary kiln

Message

Description

PRODUCT FEATURES

1. Ceramic liner technology, eliminating metal precipitation

Adopt ceramic inner liner, no metal contact in the sintering process, achieve full metal isolation from the source, ensure the purity of the powder, and completely solve the industry pain point of metal pollution in the sintering process.

2. Dynamic tumbling heating, fast and uniform

Replace the traditional static sagger sintering method, so that the material dynamic tumbling heating, to overcome the static sintering of the material produced by over-burning, entrapment and other defects, greatly improving the uniformity and stability of the material heat.

3. Production efficiency by more than 30%, energy consumption by more than 50%

Automatic feeding and discharging, continuous production, compared with the traditional sintering furnace, production efficiency is greatly improved, operating costs are greatly reduced, very cost-effective.

4. Dynamic sealing system, no leakage

Special dynamic sealing structure, effectively protect the rotary kiln airtight, no leakage, thus ensuring the purity of the material, improve the quality of the user's products.

5. Partition temperature control, high precision atmosphere control

Automatic partition temperature control, can realize the temperature zone not less than 5, supplemented by PLC control, man-machine interaction, save time and effort, data at a glance.



Performance Parameters

Furnace type: continuous non-metallic rotary kiln Output: 100 kg/h~1000 kg/h
Maximum working temperature: 1000 ℃ Heating power: 552 kw
Processing atmosphere: oxygen, compressed air or atmosphere Heating method: zoned electric heating
Processing materials: powder, block, powder material Speed: 0.3~3 r/min
Inner tank diameter: φ800 mm Gas flow range: 0~200 (m³/h)
Inner tank length: 16000 mm Oxygen and compressed air pressure: 0~0.4 Mpa

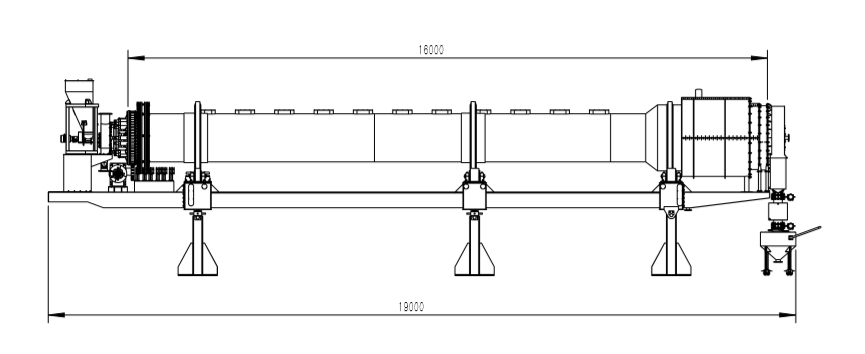

Outside Dimension
