Lithium battery recycling calcination furnace
Lithium battery recycling calciner, suitable for power lithium batteries, lithium iron phosphate batteries, lithium ternary and other lithium battery recycling sintering. Special metal liner, corrosion and wear-resistant, atmosphere control, dynamic tumbling sintering.
Category：
keyword：Experimental rotary kiln
Description
PRODUCT FEATURES
1. Lithium battery recycling calcining furnace adopts dynamic calcination method, which makes sintering more thorough and avoids undercooking and overburning as much as possible.
2. The corrosion-resistant special metal liner, combined with a precise atmosphere control system, can achieve efficient calcination and automatic temperature control.
3. PLC control, touch screen for human-computer interaction, the overall structure of the equipment is compact, simple to operate and easy to maintain.
Performance Parameters
| Furnace type: Lithium battery recycling calcining furnace | Output: 100~1500 kg/h |
| Working temperature: 650 ℃ | Heating power:330 kw |
| Processing atmosphere: nitrogen, oxygen, argon | Installed power: 370 kw |
| Processing materials: powder materials | Speed: 1~5 r/min |
| Inner tank diameter: 1300 mm | Gas flow range: 0~150 (m³/h) |
| Inner tank length: 13000 mm | Gas pressure: 0.4~0.6 Mpa |
| Applicable materials: recycling and calcination of lithium battery materials, positive electrode materials, and negative electrode materials | |

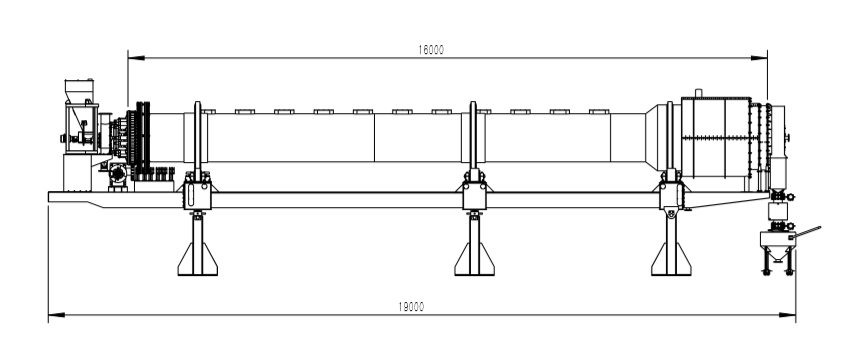

Overall Dimension
